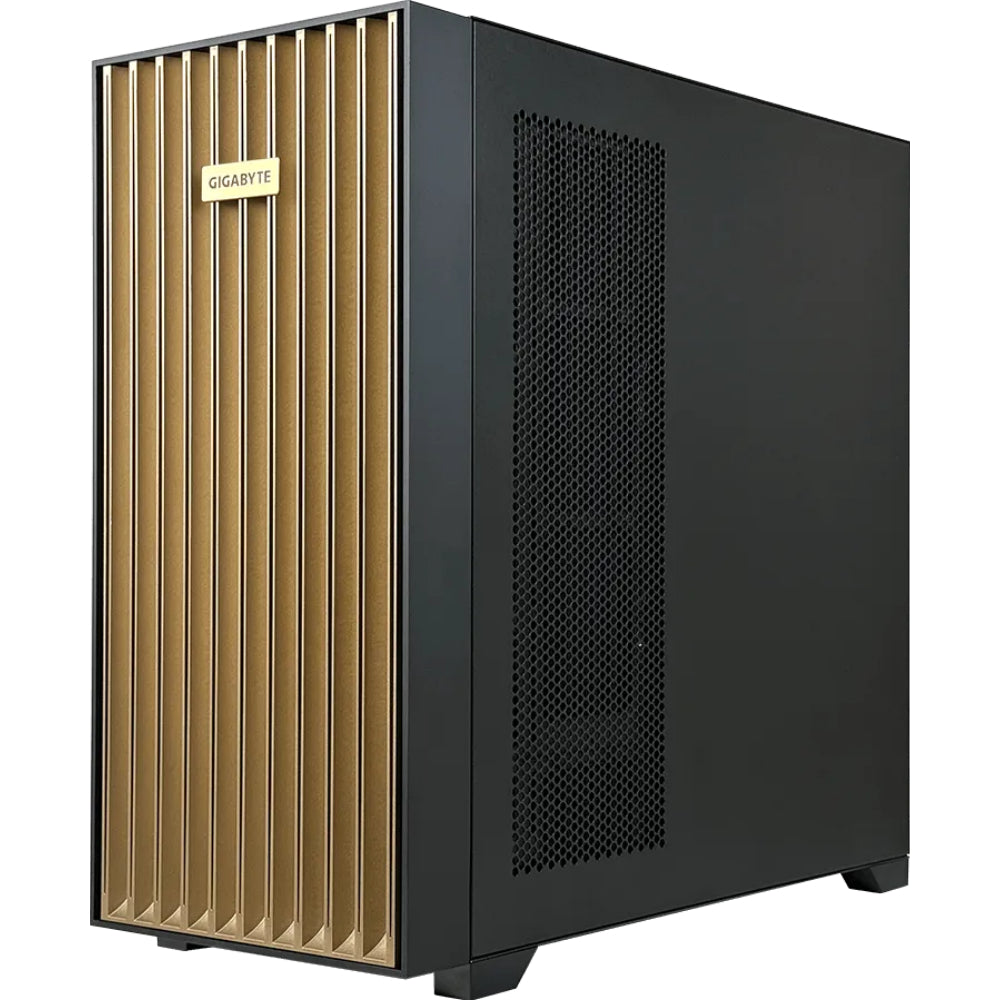

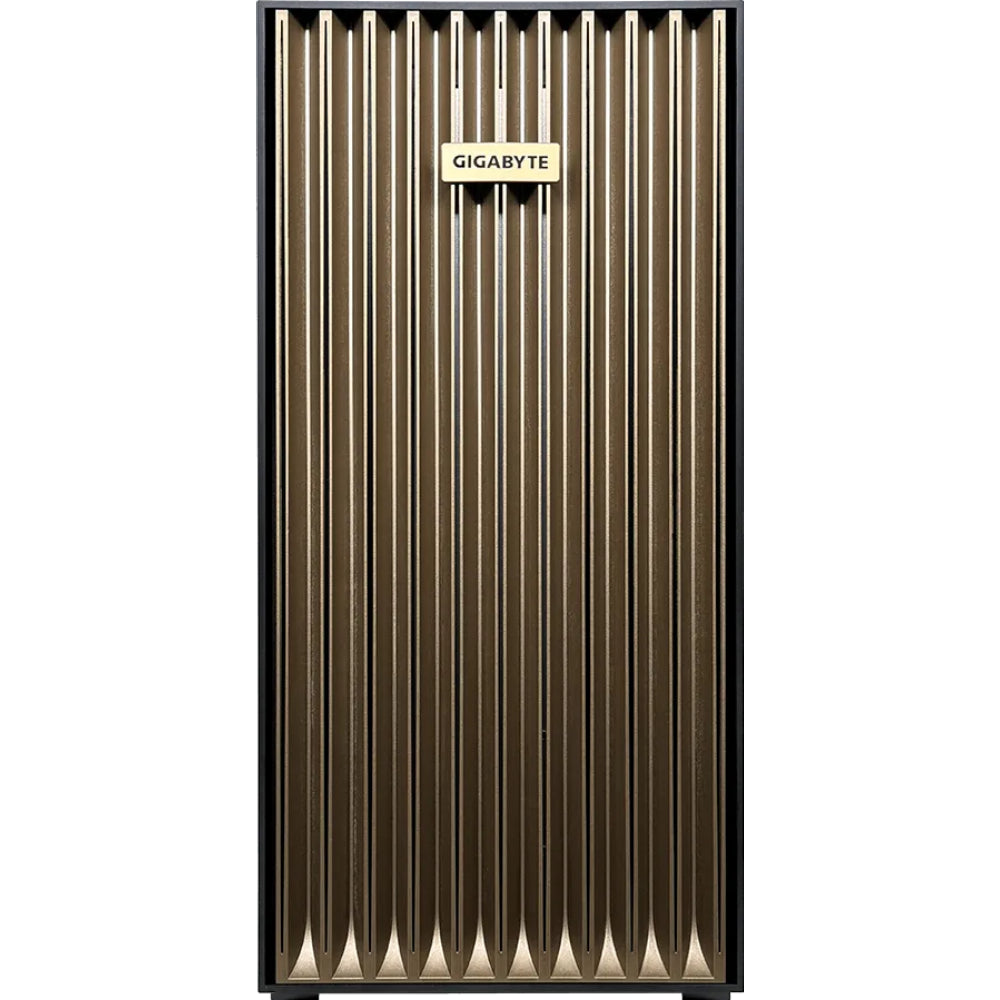

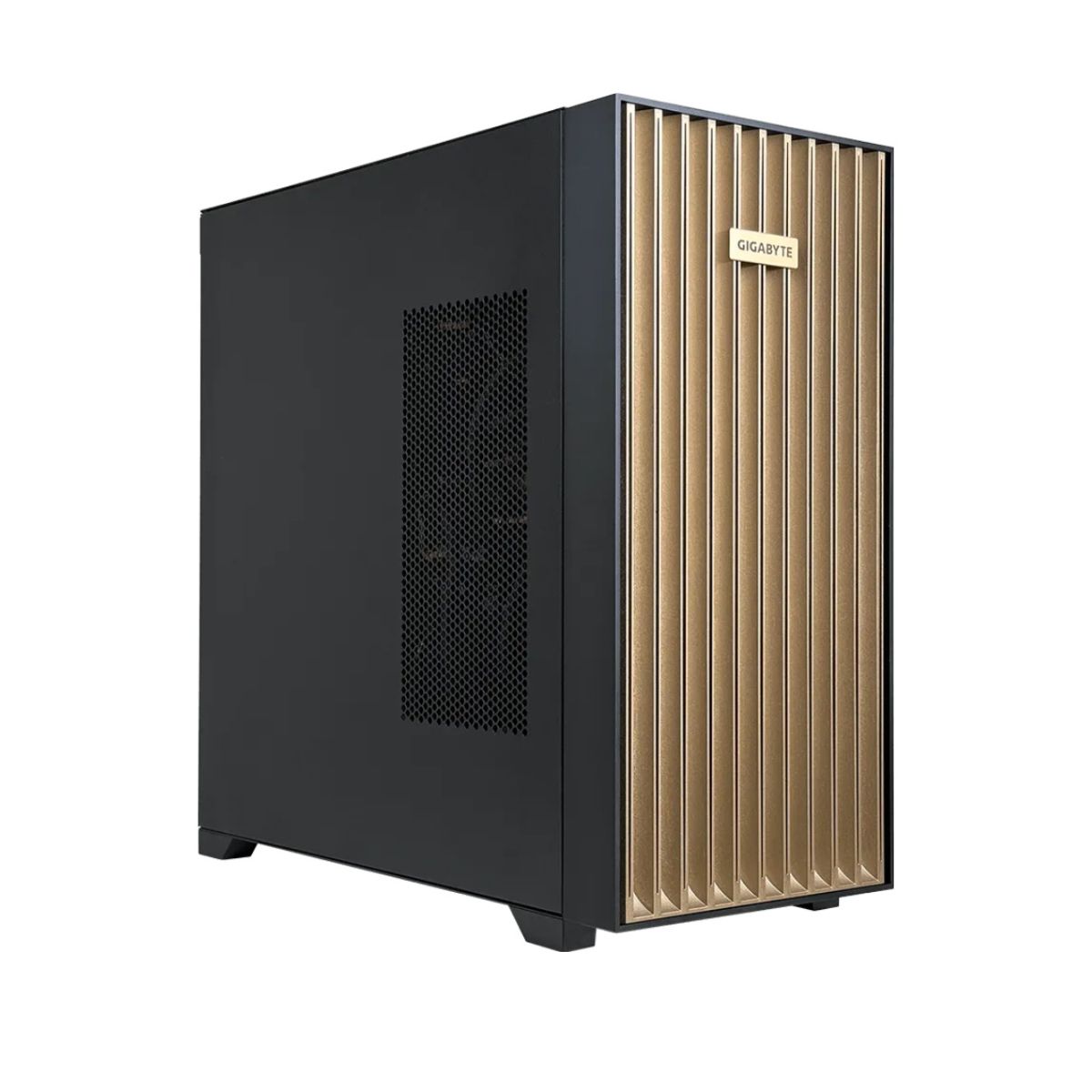

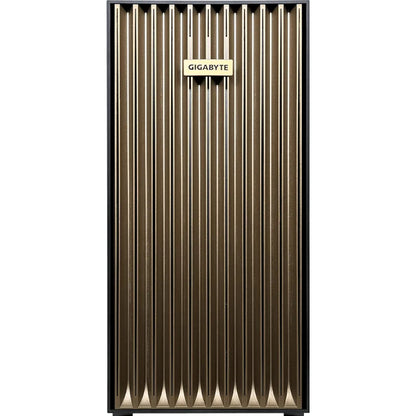

GIGABYTE W775-V10-L01 NVIDIA DGX Station Grace Blackwell Ultra Computer

Name: GIGABYTE W775-V10-L01 NVIDIA DGX Station Grace Blackwell Ultra Computer
Brand: GIGABYTE
SKU: 6NW775V10MR000L01
Price: 485000.00 MYR
Availability: InStock

RM485,000.00

Sale Sold out

Shipping calculated at checkout.

Pre-order now. Typically 10 weeks from confirmed order.

ENQUIRE NOW WhatsApp Us: 012 627 2280

Pre-order now. Typically 10 weeks.

GIGABYTE W775-V10-L01: the DGX Station you can add a graphics card to

GIGABYTE's NVIDIA DGX Station comes out of its W-series workstation line, which shares engineering with the server business rather than the consumer board side. The GB300 Grace Blackwell Ultra silicon is fixed by NVIDIA and identical across every partner build. What GIGABYTE brings is the most compact chassis of the three and, unusually, real PCIe expansion: the base DGX Station platform has no display output beyond management video, so the ability to fit a graphics card matters if the machine needs a proper desktop head.

NVIDIA GB300 Grace Blackwell Ultra Desktop Superchip: a 72-core Grace Arm Neoverse V2 CPU with a Blackwell Ultra GPU over NVLink-C2C at 900 GB/s.
748 GB coherent memory: 252 GB HBM3e at 7.1 TB/s plus 496 GB LPDDR5X ECC at 396 GB/s, for models up to 1 trillion parameters.
20 PFLOPS dense FP4, rising to 153 PFLOPS with sparsity.
PCIe expansion: one PCIe x16 slot at Gen5 x16 for a GPU plus two PCIe x16 slots at Gen5 x8. GIGABYTE lists the RTX PRO 6000 Blackwell, RTX PRO 6000 Max-Q, RTX PRO 4000 SFF and RTX PRO 2000 as options.
Most compact of the three: a 245 x 500.4 x 531 mm pedestal at 29.2 kg net.
Mixed-generation storage: two M.2 PCIe Gen5 x4 from the CPU carrying the OS with RAID 1 support, plus two M.2 PCIe Gen6 x4 off the ConnectX-8.
3-year manufacturer warranty, with EMARQUE handling any RMA locally in Malaysia.
Closed-loop liquid cooling on the Superchip with three 120 mm system fans.

GIGABYTE W775-V10-L01 Specifications

Platform: NVIDIA DGX Station, GB300 Grace Blackwell Ultra Desktop Superchip
CPU: NVIDIA Grace, 72-core Arm Neoverse V2
GPU: NVIDIA Blackwell Ultra, NVLink-C2C at 900 GB/s
Coherent memory: 748 GB total, 252 GB HBM3e (7.1 TB/s) plus 496 GB LPDDR5X ECC (396 GB/s)
AI compute: 20 PFLOPS dense FP4, 153 PFLOPS with sparsity
Model ceiling: up to 1 trillion parameters; MIG into up to 7 isolated GPU instances
Storage: 2x M.2 (2240/2260/2280) PCIe Gen5 x4 from the CPU with OS RAID 1 support, 2x M.2 (2240/2260/2280) PCIe Gen6 x4 from the ConnectX-8, plus 1x M.2 2230 E-key for WiFi
Expansion: 1x PCIe x16 (Gen5 x16) for GPUs, 2x PCIe x16 (Gen5 x8). Optional NVIDIA RTX PRO 6000 Blackwell, RTX PRO 6000 Blackwell Max-Q, RTX PRO 4000 SFF or RTX PRO 2000
Networking: 2x 400 Gb/s QSFP via NVIDIA ConnectX-8 SuperNIC, 1x 10 Gb/s LAN (Marvell AQC113), 1x 10/100/1000 Mb/s management LAN
Front I/O: 1x USB 3.2 Gen2 Type-C, 2x USB 3.2 Gen1 Type-A, 2x audio jacks

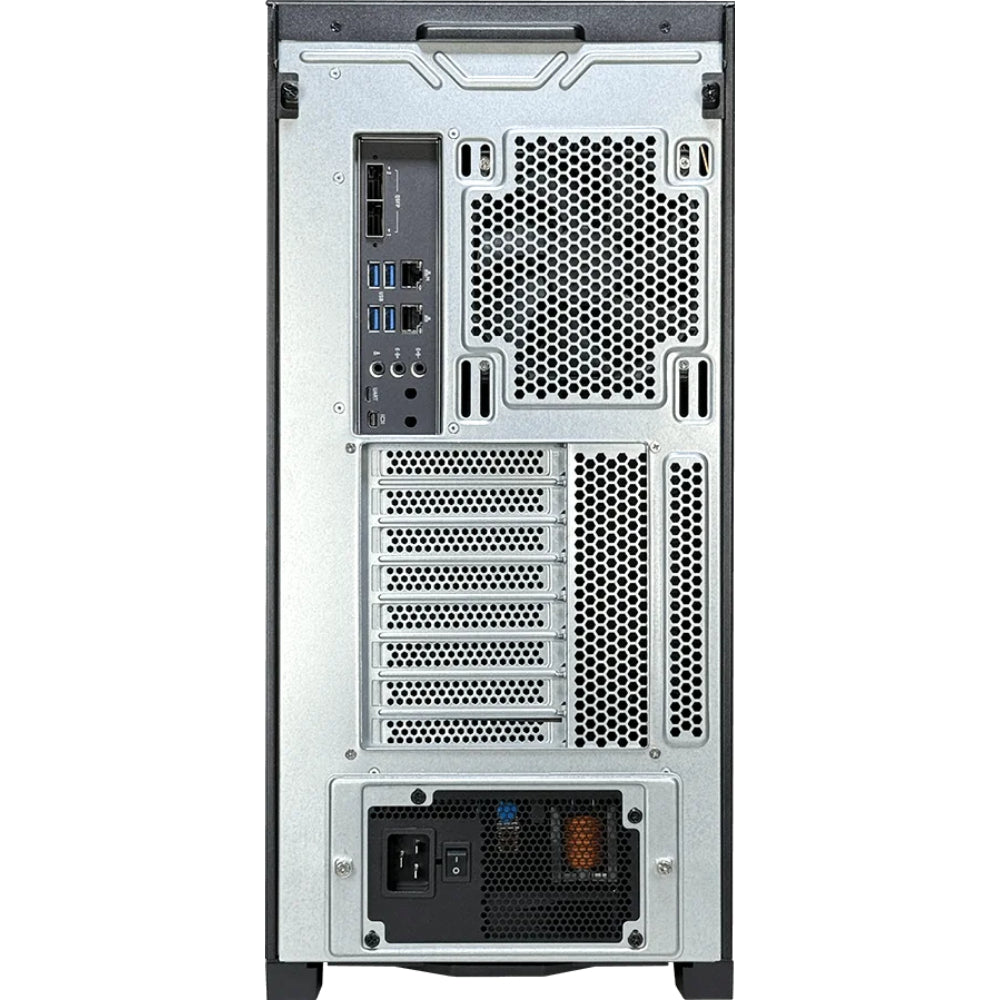

Rear I/O: 4x USB 3.2 Gen2 Type-A, 1x Mini-DP, 1x RJ45, 1x management LAN, 3x audio jacks
Video: Mini-DP from the onboard BMC at 1920 x 1080 60 Hz
Audio: Realtek ALC4080 codec
Cooling: closed-loop liquid cooling on the Superchip, 3x 120 x 120 x 25 mm system fans
Power: single 1600W ATX 80 PLUS Platinum. Requires a C19 power cord, which is not supplied, and a 20-amp circuit
Operating range: 10C to 35C, 8% to 80% humidity non-condensing
Dimensions: 245 x 500.4 x 531 mm pedestal, 29.2 kg net
Warranty: 3-year manufacturer warranty, with local RMA handling by EMARQUE
Software: NVIDIA DGX OS, an Ubuntu base with the NVIDIA AI Developer Tools preinstalled. NVIDIA AI Enterprise is licensed separately and can be quoted with the system
Availability: typically 10 weeks from a confirmed order

Compare all three builds on the NVIDIA DGX Station page, or see NVIDIA RTX PRO Blackwell GPUs for the add-in card options.

Configuration options and delivery scheduling confirmed at order.

View full details

WHY CHOOSE US?

WE BUILD MALAYSIA'S MOST ADVANCED COMPUTERS

We deliver the best PC experience to our customers with the best work product by our meticulous assembly process - completed with validation & stress testing to ensure our PC's run well from Day 1. The dedication that we put into building and designing high performance custom PCs also extends into aftersales, end-to-end services.

FAQ

Frequently asked questions

What ships with the GIGABYTE W775-V10-L01, its full specification, and the warranty behind it.

What ships with the GIGABYTE W775-V10-L01?

GIGABYTE's DGX Station comes out of its W-series workstation line, which shares engineering with the server business rather than the consumer board side. The unit arrives as a complete system: the GB300 tower, integrated power, GIGABYTE documentation, and Ubuntu with the NVIDIA AI Developer Tools already installed.
EMARQUE can bench-test the unit before dispatch on request. Deployment work such as MIG partitioning, ConnectX-8 networking and a private LLM or RAG stack is quoted separately by the EMARQUE AI team.
What are the exact specifications of the GIGABYTE W775-V10-L01?
The compute is set by NVIDIA and is identical on all three partner units: a GB300 Grace Blackwell Ultra Superchip pairing a 72-core Grace Arm CPU with a Blackwell Ultra GPU over NVLink-C2C at 900 GB/s, one coherent 748 GB memory pool made up of 252 GB of HBM3e at 7.1 TB/s and 496 GB of LPDDR5X at 396 GB/s, 20 PFLOPS of dense FP4 compute rising to 153 PFLOPS with sparsity, ConnectX-8 networking with two 400 Gb/s QSFP ports plus 10 GbE and a management LAN, and MIG partitioning into up to 7 isolated instances. NVIDIA positions the platform for models up to 1 trillion parameters. The full table is on the NVIDIA DGX Station page.
What GIGABYTE does with it:
- Chassis: 245 x 500.4 x 531 mm pedestal at 29.2 kg net, the most compact of the three.
- Cooling: closed-loop liquid cooling on the Superchip plus three 120 mm fans.
- Expansion: the differentiator. One PCIe x16 Gen5 x16 slot for a GPU and two PCIe x16 Gen5 x8 slots, with GIGABYTE listing the RTX PRO 6000 Blackwell, RTX PRO 6000 Max-Q, RTX PRO 4000 SFF and RTX PRO 2000 as options. Since the base platform has no display output beyond BMC video, that matters if the machine needs a real graphics head.
- Storage: two M.2 PCIe Gen5 x4 from the CPU carrying the OS with RAID 1 support, plus two M.2 PCIe Gen6 x4 off the ConnectX-8.
- Power: a single 1,600W 80 PLUS Platinum supply. Note it needs a C19 power cord, which is not supplied in the box.
- Rear I/O: four USB 3.2 Gen2 Type-A, Mini-DP, RJ45 and management LAN, with USB 3.2 Gen2 Type-C and two Type-A on the front.
For how DGX Station compares to NVIDIA DGX Spark and which workloads suit it, see the collection page. If one Station is not enough, see NVIDIA AI servers.
What warranty does the GIGABYTE W775-V10-L01 carry?

The unit carries GIGABYTE's 3-year manufacturer warranty on hardware. All three DGX Station builds EMARQUE carries run to three years; the ASUS build is the one with a documented next-business-day on-site response. EMARQUE handles the claim locally rather than sending you to an overseas queue: one Malaysian team for pre-sale sizing, post-sale questions and any RMA routing.
Deeper post-sale work, including OS reinstall, driver issues, MIG configuration, ConnectX-8 networking and multi-Station setup, is available from the EMARQUE AI team and quoted on enquiry.
